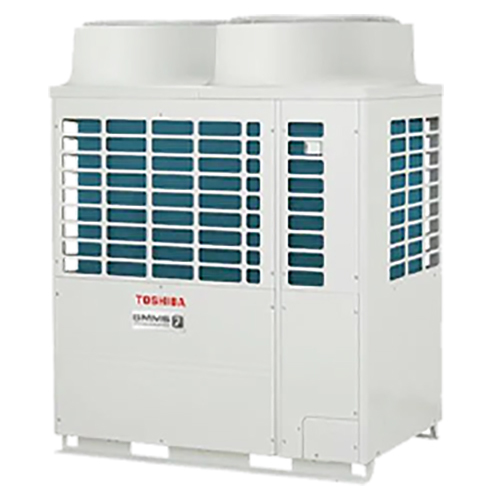

SMMS-7 VRF Top Discharge AC

Get a Price/Quote

MOQ : 1 Unit

SMMS-7 VRF Top Discharge AC Specification

Compressor
Scroll Twin Rotary x2

Indoor Fan Input
Variable, based on indoor unit

Mounting
Outdoor Floor Mounted

Sensible control
Yes

Temperature Control
Microprocessor-based

Power Mode
Automatic/Manual

Outdoor Fan Input
660 W

Power Consumption
24.0 kW

Refrigerant
R410A

Condition
New

Place of Origin
Japan

Power Supply
Direct Wired

Air Flow Capacity
13,800 m3/h

Filtration Grade
High Efficiency

Cooling Capacity
79.5 kW

Heating Capacity
90.0 kW

Running Current
39A

Dimension (L*W*H)
1320 x 970 x 1900 mm

Type Of Compressor
DC Inverter

Type
Top Discharge VRF AC

Cooling/Heating
Cooling & Heating

Capacity
28.0 HP

Power Source
Electric

Voltage
380-415V, 3Ph, 50Hz

Color
White & Grey

Weight (kg)
345 kg

Working Temperature
-5C to 48C

Fan Speed
Multiple (Auto/Manual)

Noise Level
62 dB(A)

Energy Efficiency Rating
High (Specific EER on request)

Remote Operated
Yes

Maximum Pipe Length
165 m total

Installation Kit Included
Yes

Number of Connectable Indoor Units
Up to 64

Panel Material
Powder Coated Galvanized Steel

Operating Modes
Auto, Cooling, Heating, Fan only, Dry

Outdoor Unit Protection
IP24 Weather Resistant

Safety Features
Auto Restart, Phase Protection, Overload Protection

Piping Connection
Flare Nut Connection

Communication Protocol
TCC-Link

Minimum Pipe Length
5 m

Oil Equalizer
Built-in

Expansion Valve Type
Electronic Expansion Valve

Controller Compatibility
Centralized & Individual Control Panels

Defrost Function
Automatic

Noise Reduction Features
Optimized Fan Blade & Anti-Vibration Mount

Maximum Height Difference
50 m

About SMMS-7 VRF Top Discharge AC

Grab the excellent SMMS-7 VRF Top Discharge AC now on sale with unbeatable markdowns! This first-class, sought-after air conditioning system features robust IP24 weather-resistant protection, advanced electronic expansion valves, and a high-efficiency filtration grade, making it ideal for demanding environments. Connect up to 64 indoor units over significant distances, ensuring flexible installation. Enjoy whisper-quiet operation, reliable operation modes (cooling, heating, fan, dry, auto), and comprehensive safety features. Made with powder-coated galvanized steel, smart microprocessor controls, and built-in oil equalizer, this AC delivers excellent energy savings and reliability. Don't miss out!

Versatile Installation & Usage for Multiple Applications

The SMMS-7 VRF Top Discharge AC is designed for general as well as specific use in commercial premises, large offices, hotels, and institutional buildings. Its adaptable piping connections, wide temperature operation, and ability to connect multiple indoor units make it suitable for both new installations and renovation projects. The system's high air flow capacity and effective cooling ensure reliable operation across various surfaces and extensive application scopes, providing a comfortable environment in diverse spaces.

Main Export Markets, Supply Chain, and Certifications

The SMMS-7 VRF Top Discharge AC is supplied across major export markets including India and several international destinations. With reliable transport services and efficient transportation management, samples are available on request to support dealer, distributor, service provider, and supplier needs. Certified to high international standards, this advanced system ensures top-tier quality and operational safety, meeting the expectations set by global supply chains and regulatory requirements.

FAQ's of SMMS-7 VRF Top Discharge AC:

Q: How does the SMMS-7 VRF Top Discharge AC benefit large commercial spaces?

A: The SMMS-7 VRF Top Discharge AC allows for up to 64 indoor units to be connected, providing efficient cooling and heating over vast areas, making it perfect for large commercial, office, or hospitality settings.

Q: What is the process for installation and what's included?

A: An installation kit is included, designed for quick and straightforward setup. The system supports flexible pipe lengths and height differences, and it mounts securely on outdoor floors, making it adaptable to various building layouts.

Q: Where can the SMMS-7 VRF AC be used effectively?

A: This VRF unit excels in environments requiring high capacity and flexible installation, such as offices, hotels, hospitals, and institutions, with proven performance under challenging weather conditions thanks to its IP24 rating.

Q: What general and specific uses does the AC system cater to?

A: It is tailored for both general cooling and heating as well as specialized climate control situations-ideal for surface applications across diverse building types and usage scenarios.

Q: What kind of certifications and export support does the product have?

A: The SMMS-7 VRF AC is certified to meet rigorous international standards and is supplied through reliable transportation and export channels, ensuring quality and timely delivery for dealers and service providers.
